Inside size

6900×4000×2650 mm（L×W×H）

Outside size

7040×5950×3420 mm（L×W×H）

Basement

The height is 300mm, the complete strong galvanized steel structure basement, profile steel support, all grills (hot galvanizing pretreatment, more stronger), 3pcs big ramps, the size is 2000(L)X900(W)X300(H)mm.

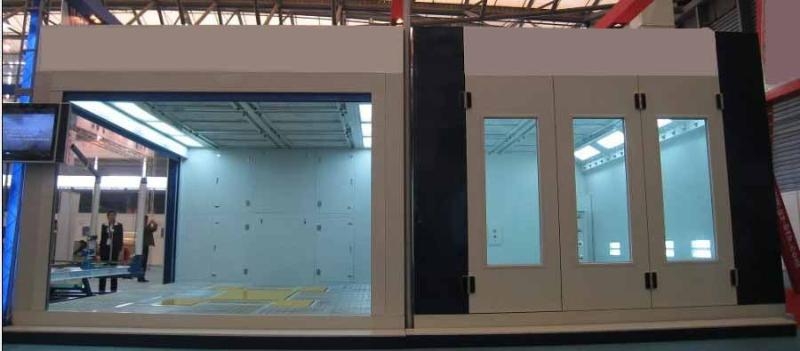

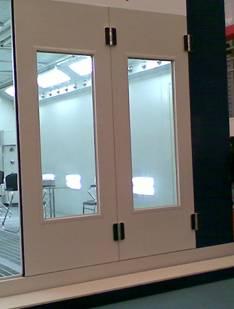

Front door

1 set ,3000×2600mm(W×H)，rock wool panel, aluminum alloy frame

Working door

1 pcs,800×1800mm(W×H)，with pressure lock

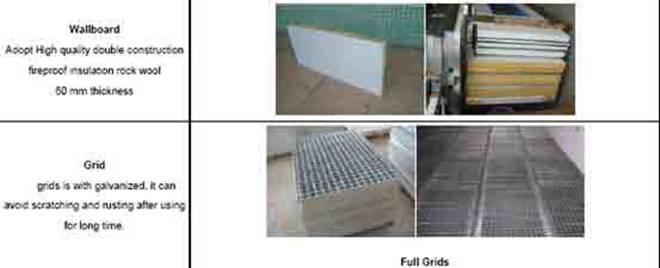

Wall panel

side wall panel rock wool 70mm thickness, δ=0.476mm color steel sheet cover，jacked, width is 1150mm

Ceiling panel

Ceiling panel rock wool 50mm thickness, δ=0.476mm color steel sheet cover，

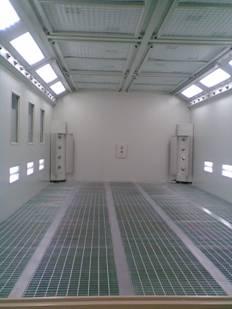

Ceiling Lighting (outside open)

Ceiling light 2×5×4=40pcs 36W, light box open from outside, Philips tube

Side Lighting (outside open)

Side light 8×2=16pcs 36W, vertical light, light box open from outside, Philips tube

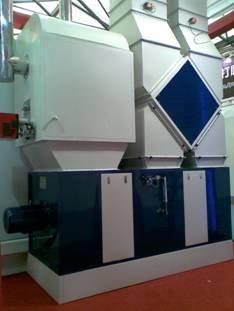

Air cabin material

Air cabin on the right (left, back for optional), up air intake, up air outlet, aluminum alloy frame, powder coating pretreatment.

Air fan

1 set air intake centrifugal fan, Siemens motor outside, with belt, model：DDF-800, power：11KW，air volume：31000 m3/h, with inverter;

1 set air outlet turbo high pressure fan, Siemens motor outside, direct drive, model：DDF-630B, power：7.5KW，air volume: 25000 m3/h, with inverter;

Air pipe

Separate air inlet and exhaust pipe; with rain-proof hat and flop damper;

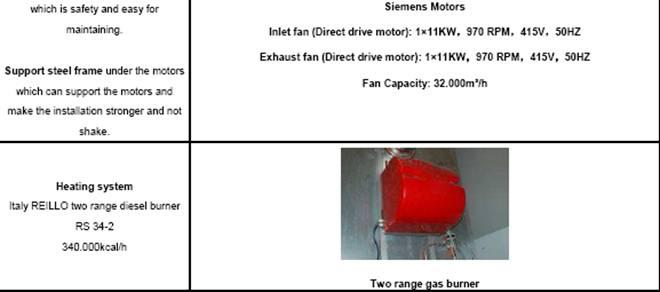

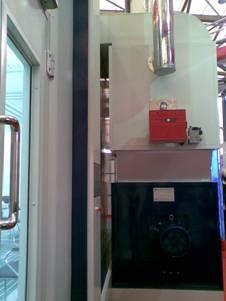

Heating system

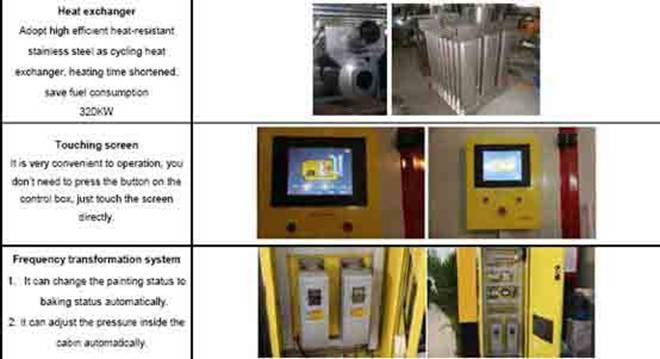

1 set Riello RG5S diesel burner, stainless steel high efficiency heat exchanger, max heating is 260000Kcal/h; pneumatic actuator from spray to baking cycle;

Filter system

Primary filter, high efficiency filter, fiber glass filter, exhaust filter, active carbon filter.

Electric control system

Micro computer operation system, painting, rise-temperature spray, baking, baking time setting, lighting, pressure adjust balance, failure indication, over-temperature alarm indication, temperature limiter, floor wire, emergency stop switch, inverter etc

Voltage require

3×415V,50HZ

illumination

≥800LUX

Max work temperature

80℃

Idle air speed

≥0.3m/s

Total power

25KW
