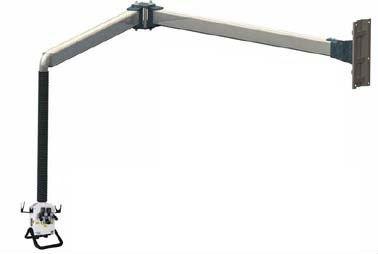

Cantilevered central dust collection system
Polished cantilevered central dust collection system of the host by the central dust collector,piping systems,suspension features a single free tool with the grinding system.depending on the plant layout requirements,the power,gas source and a fixed dust collection system interface through the pipeline each station over the layout for the operator to provide electricity, compressed air and polishing dust collection requirements,the use of tools hanging on the cantilever,safe and reliable.cantilever using light weight,high strength aluminum alloy material compression molding,all the gas supply,transmission,and vacuum pipes are arranged on the cantilever,the cantilever is also equipped withe compressed air for cleaning,pressure regulator and oil mist lubrication device.cantilever height from the ground installation, choose, generally 3.5meters.the system is available for two or two pneumatic tools power tools to use.supporting the main pneumatic tools for painting in the workshop to the old paint, sanding putty and fine grinding in the priming treatmeng.can be easily mounted on walls,steel beams and other locations.this can be made 5,6,7meter long cantilever.
TECHNICAL DATA
Voltage:1HP 220V
Current:10.4A
Power:2500W
Air Flow:264m3/h
Water Mt:25740mm/H20
Tank:35L
Socket
:2×220V
Air Pressure:0.8Mpa
Total lenght:5m
Working Area:39m2
Tools system
list
No.
Order
No.
Type and Discription
1
GTDE-60 150/5
2
GTDE-50-3 125/3
3
GTDE-204
4
HOSE 350(Optional 5 meters and
7 meters)
5
GTDE-5000 CT/SR-CN(Optional
6-meters cantilever)
6
EAA EW/DW CT/SR/M-CN
7
GTDE-5555
Industrial dust
extractor with automatic on/off switch for both air tools and electric tools,
and with antistatic function

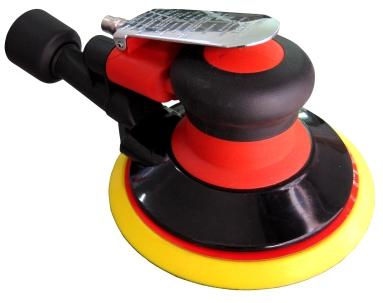

Random orbital sander for preparation work,sanding putty
Random orbital sander for fine and final sanding

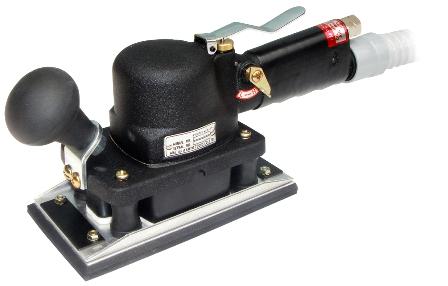

Obital sander for flatting and preparation work
hose 3.5 m length with antistatic function
cantilever system 5 m
Energy box and air service unit, allows the use of 2 pneumatic and 2
electrical tools
