ANS-V3D III Wheel Alignment System
Model: ANS-V3D III
Description
Play FLV video
Product Overview

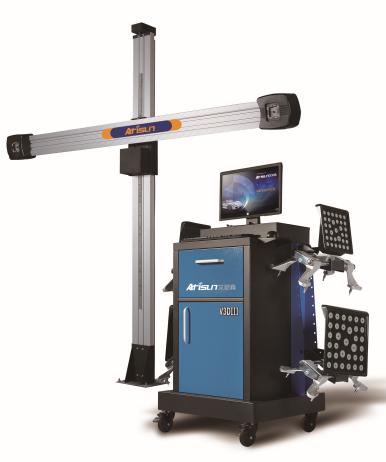

The V3D III Wheel Alignment System is one of the most advanced alignment systems on the market today. Patented imaging technology provides accurate, real-time measurements that improve productivity. User-friendly features such as EZ-TOE, VODI and an extensive vehicle specification database deliver customer satisfaction, ease of use and accuracy.
Key Features
Versatile, Accurate Hardware
- Digital cameras produce accurate, live alignment readings and diagnostic data.
- Passive front and rear targets improve durability with no electronics to damage.
EZ-Link Steering Angle Sensor (SAS) Reset
- Alerts technicians to OEM service and maintenance procedures related to Electronic Stability Control and Electric Power Steering systems.
- OEM instructions guide technicians through steering angle sensor and other required sensor resets, including manual and electronic resets.
Universal Wheel Clamps
- Handles wheel diameters from 13 to 24 inches (33 to 56 cm) as standard.
- Interchangeable grippers minimize wheel damage.
VODI - Vehicle Orientation Directional Indicator
- Guides the technician through the measuring process.
- Reduces time spent walking between the vehicle and aligner console.
Complete Feature List
- SAI and Thrust Angle
- Included Angle
- Toe Out On Turns / Maximum Turn
- Front and Rear Toe
- Front / Rear / All / Zoom Readings
- Frame Check Light Truck Frame Angle
- Initial / Final Color Printouts
- Individual Camber / Caster / Toe
- Front Caster (-28° to +28°)
- Front and Rear Camber (-15° to +15°)
- Help Videos
- A-Arm Adjustments
- Adjust Camber Only
- Elevated Adjustments
- Rear Shim Programs
- Multiple Lift Support (3)
- EZ-Link
- EZ-TOE
- Live Caster, Camber and Toe - Turnplates
- Live Caster, Camber and Toe - Elevated
- Equalize Toe Warning
- Adjust Front Before Rear Warning
- Multiple Clamp Support
- 2-Wheel Alignment
- 32 Languages
- Multiple Print Formats
- Custom and Regional Vehicle Specifications
- Integrated Help System (PDF)
- Tools, Parts and Adjustment Instructions
- Advanced Customer Database with Backup / Restore
- Multiple Units of Measure
- Caster and SAI on Turnplates
- SAI Elevated
- North Star Shim Program
- Light Truck Bushing
- Vehicle Specifications: 25+ Years
- Remote Control
- Variable-Height Camera Support Controls
Specifications
Technical Characteristics
| Specification | Item | Accuracy | Range | Total Range |
|---|---|---|---|---|
| Front Wheel | Camber | ±0.02° | ±8° | ±8° |
| Caster Angle | ±0.05° | ±10° | ±10° | |
| Kingpin Caster Angle | ±0.02° | ±19° | ±19° | |
| Toe | ±0.02° | ±4° | ±8° | |
| Rear Wheel | Rear Axle Offset | ±0.02° | ±2° | ±4° |
| Maximum Steering Angle | ±0.08° | ±25° | ±45° | |
| Thrust-angle | ±0.02° | ±2° | ±4° | |
| Track Width Difference | ±0.03° | ±2° | ±8° | |
| Front Set Back | ±0.02° | ±2° | ±4° | |
| Rear Set Back | ±0.02° | ±2° | ±4° | |
| Track Width | ±0.64 cm (0.25 in) | <265 cm (105 in) | <265 cm (105 in) | |
| Wheel Base | ±0.64 cm (0.25 in) | <533 cm (210 in) | <533 cm (210 in) |
